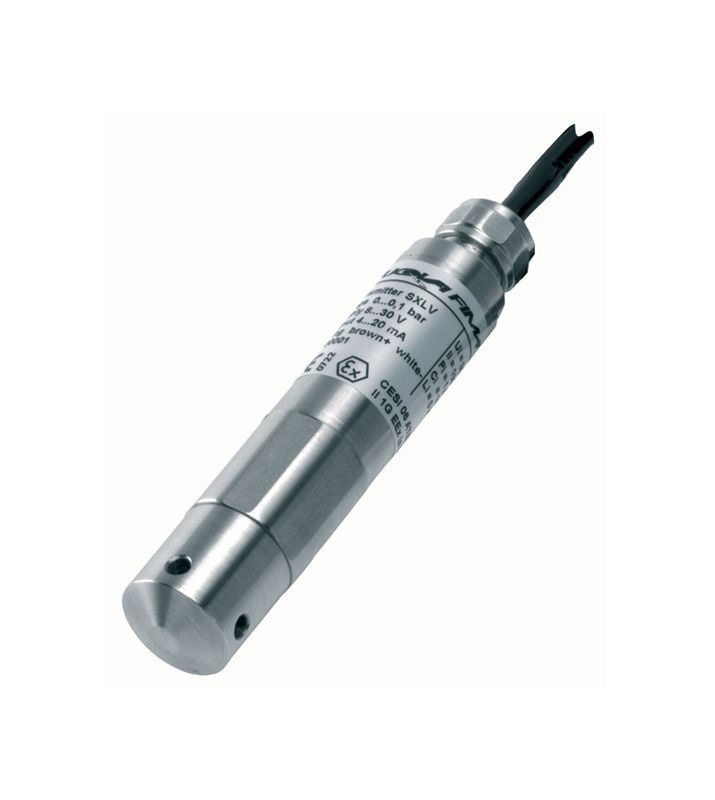

SX LV

Intrinsically safe level transmitter, ATEX version

✔ Zones : 0, 1, 2
✔ EMC immunity: as per EN 61326.

Industrial sector:
  • Water treatment
Instrument type:
  • Submersible pressure transmitters
Specific applications:
  • ATEX version
Conformity:
  • Directive PED 2014/68/UE
  • Directive ATEX 2014/34/UE
  • Directive RoHS 2011/65/UE
  • Directive EMC 2014/30/UE
Function:
  • Transmitter
Material:
  • All Stainless steel
Accuracy:
  • <= ±0,5% of the range
Range:
  • 0...0,1 / 0...25bar
Sensing element:
  • Piezoresistive and ceramic sensor
Protection degree:
  • Submersible
Process connection material:
  • AISI 316 L
Sensing element material:
  • AISI 316 L, ceramic
Type of protection:
  • II 1GD Ex ia IIC T6 Ex ia IIIC T85°C Ta<=60°C
Output signal:
  • 4...20mA
