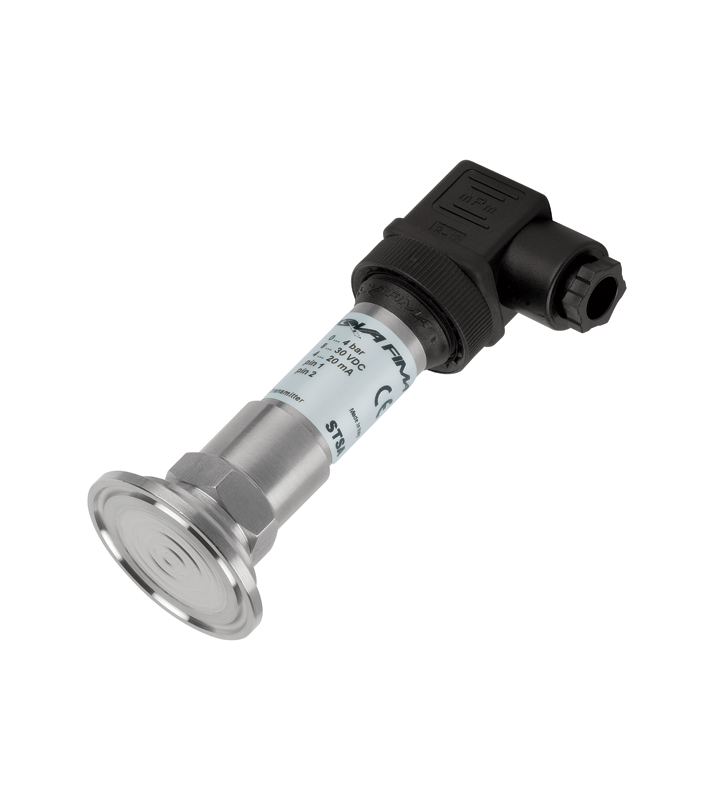

ST SA

Pressure transmitter for food industry and sanitary applications

✔ Construction and finishing: as per 74-06.
✔ Wetted parts: AISI 316L st.st.
✔ EMC emission and immunity: as per EN 61326.
✔ Calibration: adjustable.
✔ Full traceability

Industrial sector:
  • Food
  • Pharmaceutical
  • Water treatment
  • Sanitary
Instrument type:
  • Pressure transmitters
Specific applications:
  • Crystallizzing fluids
  • Viscous fluids
  • Fluctuating pressure
  • Vacuum
  • Combined (Vacuum + Pressure)
  • Sedimentous fluids
  • Vibrations
Conformity:
  • 3A
  • ISO 2852 (CLAMP)
  • SMS 681
  • RJT/IDV
  • Directive PED 2014/68/UE
  • Directive RoHS 2011/65/UE
  • Directive EMC 2014/30/UE
  • EAC Conformity
Function:
  • Transmitter
Accuracy:
  • 0,5 of FSV
Material:
  • All Stainless steel
Range:
  • 0....0,6 / 0...40bar
Sensing element:
  • Welded diaphragm
Protection degree:
  • IP 68, IP 65
Process connection material:
  • AISI 316 L
Sensing element material:
  • AISI 316 L
Output signal:
  • 4...20mA, 0...10Vcc, 0...5Vcc
Name Type Download
Data Sheet STSA Data sheetitenesptdefrru
User Guide ST09_18_MA_SA Manualitesfrru
User Guide ST09_18_MA_SA Manualen
PED-EMC-RoHS Conformityiten
RoHS Conformityiten
