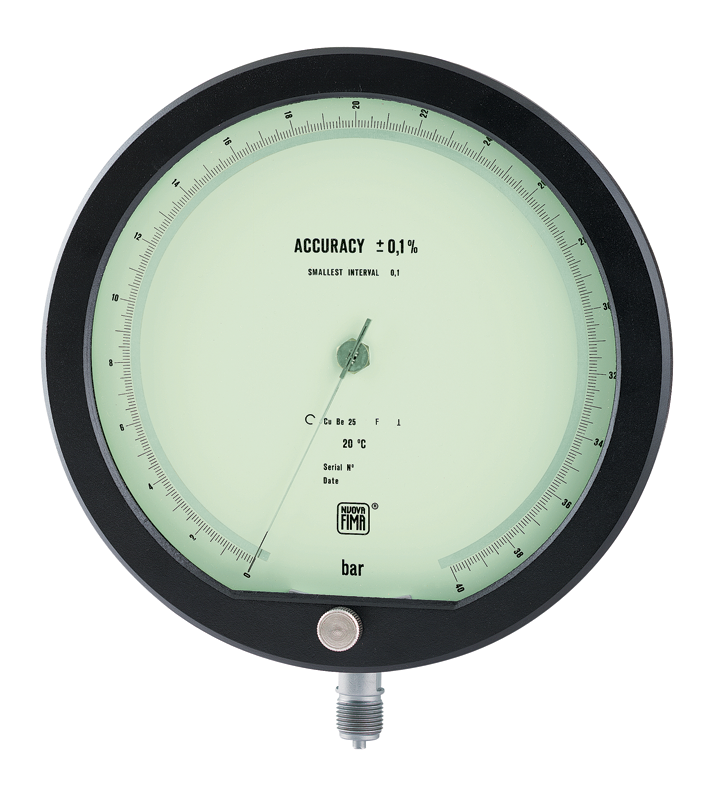

MN17/L DN250

Laboratory pressure gauges class 0,1% DS 10” (250mm)

These instruments have been designed for use as in laboratories, instrument testing or recalibration facilities or in applications where accuracy and repeatability are of prime importance. They can be used with gaseous or liquid media which do not corrode copper alloy and which do not have high viscosity nor cristalize. Each instruments is delivered with a Nuova Fima calibration report, who guarantee traceability to the national and international primary master of pressure measurements. Upon request we can supply the calibration certificate issued by an Internationally recognized laboratory of ACCREDIA (Ex S.I.T. – Italian Calibration Service).

Setor industrial:
  • Calibração
Tipo de Instrumento:
  • Manômetros com tubo Bourdon
Condições de utilização:
  • Vâcuo
Conformidade:
  • Norma EN 837
  • EAC Conformity
Precisão:
  • 0,1 del VFE
  • 0,25 de VFE
Função:
  • Indicação local
Materiais:
  • Aço Inox com materiais especiais
Escala:
  • 0...1 / 0...1600bar e vácuo
Grau de proteçāo:
  • IP 44
Pressão de trabalho:
  • 75% de VFE
