MN12/18 DN100-150

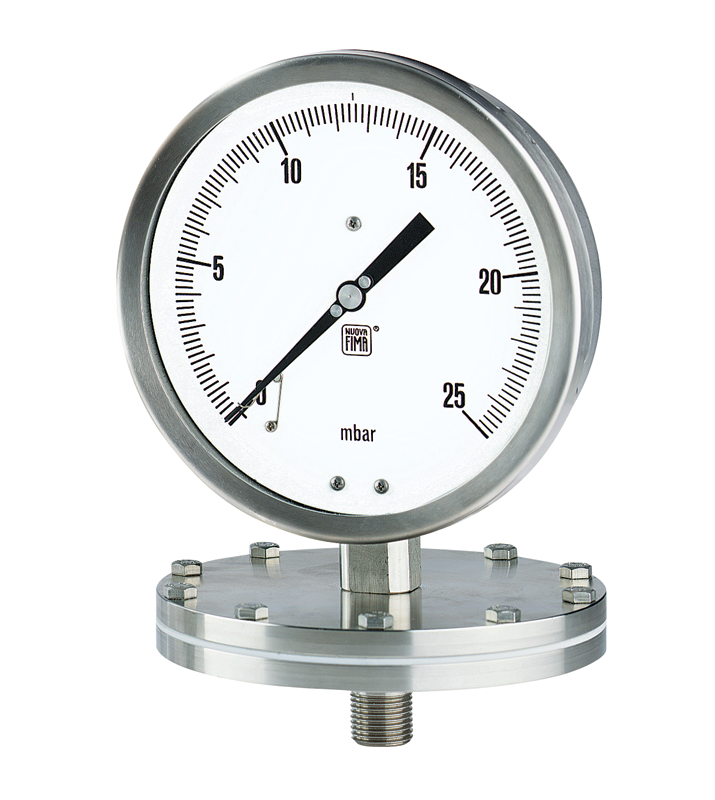

Diaphragm pressure gauge DS 4”, 6” (100-150mm) threaded connection

The sensing element is an elastic diaphragm, with concentric corrugations that drives the amplifying movement through a ball-joint. They are designed to measure pressure or vacuum of viscous, sedimentous, crystallisable or corrosive fluids. Compared to the bourdon tube system they are more robust and are better able to withstand overpressure or aggressive fluids.

工业领域:
  • 油气
  • 化工、 石化
  • 能源
  • 工程总承包 (EPC)
仪表类型:
  • 膜片压力表
使用条款:
  • 易凝固液体
  • 高粘度液体
  • 固体漂浮物液体
  • 腐蚀性液体
  • 低压
  • 真空
  • 混合（真空 + 压力）
符合:
  • EN 837 标准
  • EAC Conformity
精度:
  • 1,6 of FSV
功能:
  • 就地指示
材质:
  • 全不锈钢
范围:
  • 0...25mbar / 0...25bar
传感元件:
  • 膜片
保护程度:
  • IP 55, IP 65
传感元件的材料:
  • AISI 316L, PTFE, Tantalio, Monel 400, Hastelloy C276
工作压力:
  • 75% of FSV
密封:
  • PTFE 垫片

BSV/VM-

Bar stock needle valve, block, multiport

BSV/VV-

Bar stock needle valve, block and bleed

MP4/9

Adjustable overload protection device

MP5

Pig tails and siphons

MP3

Cocks and valves
