MN14/10 DN100-150

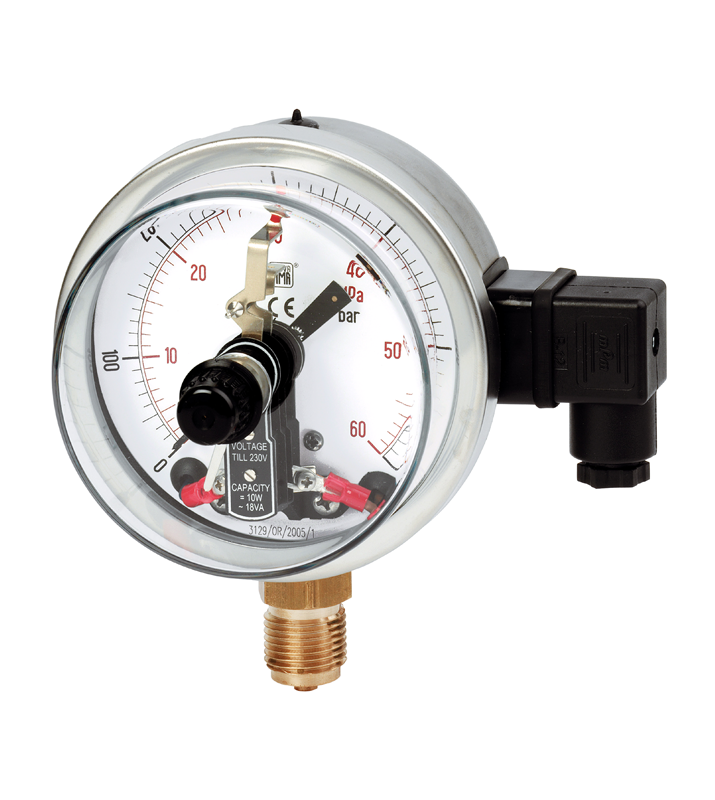

Pressure gauges with electric contacts DS 4”, 6” (100-150 mm)

Alarm contacts are accessories with movable contacts in air, which open or close electric circuits depending of the position of the indicating pointer. They are used with Bourdon tube pressure gauges, bellows, diaphragm and thermometers of NUOVA FIMA production, in such way they become pressure and temperature switches: the optimal and sure solution to automatize any kind of equipment.

工业领域:
  • 机械制造 (OEM)
仪表类型:
  • 波登管压力表
使用条款:
  • 真空
符合:
  • EN 837 标准
  • PED 2014/68/UE
  • BT 2014/35/UE
  • EAC Conformity
精度:
  • 1,0 按照 DIN 16085
功能:
  • 电接点
材质:
  • 不锈钢及铜合金
范围:
  • 0...1,6 / 0...1000bar
保护程度:
  • IP 55, IP 65
机械调整:
  • 滑动接触 磁单元行动 电子归纳的 干预：1 ...2
工作压力:
  • 75% of FSV

MP4/9

Adjustable overload protection device

MP5

Pig tails and siphons

MP3

Cocks and valves
