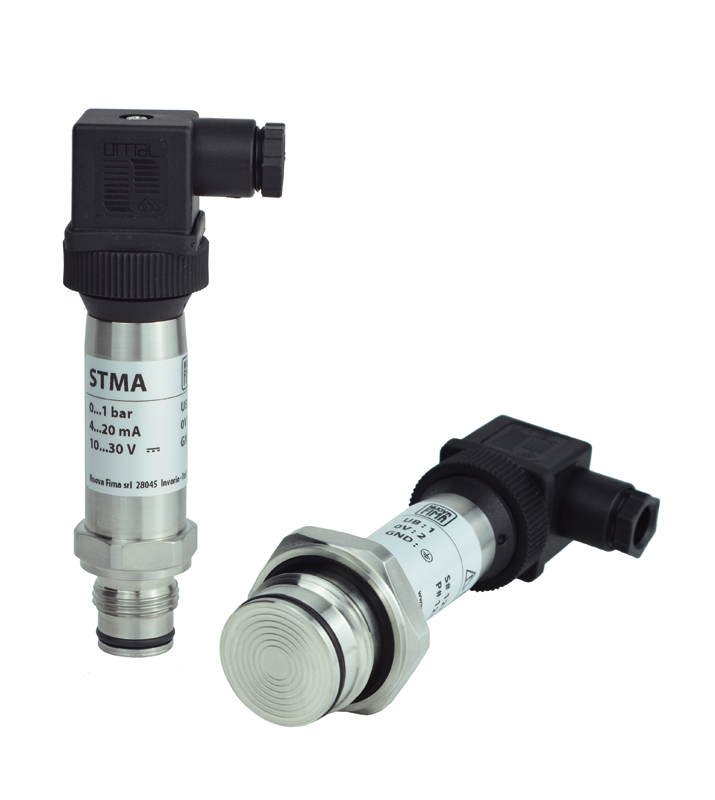

ST MA/DG

Piezoresistive pressure transmitter flush diaphragm, double sealing, 0,5% accuracy

Industrial sector:
  • Chemical, Petrochemical
  • Water treatment
  • Oil & Gas
  • Machine building (OEM)
Instrument type:
  • Pressure transmitters
Specific applications:
  • Crystallizzing fluids
  • Viscous fluids
  • Corrosive fluids
Conformity:
  • Directive PED 2014/68/UE
  • Directive RoHS 2011/65/UE
  • Directive EMC 2014/30/UE
  • EAC Conformity
Function:
  • Transmitter
Accuracy:
  • 0,5 of FSV
Material:
  • All Stainless steel
Range:
  • 0...1 / 0...600bar
Sensing element:
  • Welded diaphragm
Protection degree:
  • IP 65
Process connection material:
  • AISI 316 L
Sensing element material:
  • AISI 316 L
Output signal:
  • 4...20mA, 0...10Vcc, 0...5Vcc
Name Type Download
Data Sheet STMA-DG Data sheetitenesptdefrru
User Guide ST09_18_MA_SA Manualitenesfrru
PED-EMC-RoHS Conformityiten
RoHS Conformityiten
