SX SA

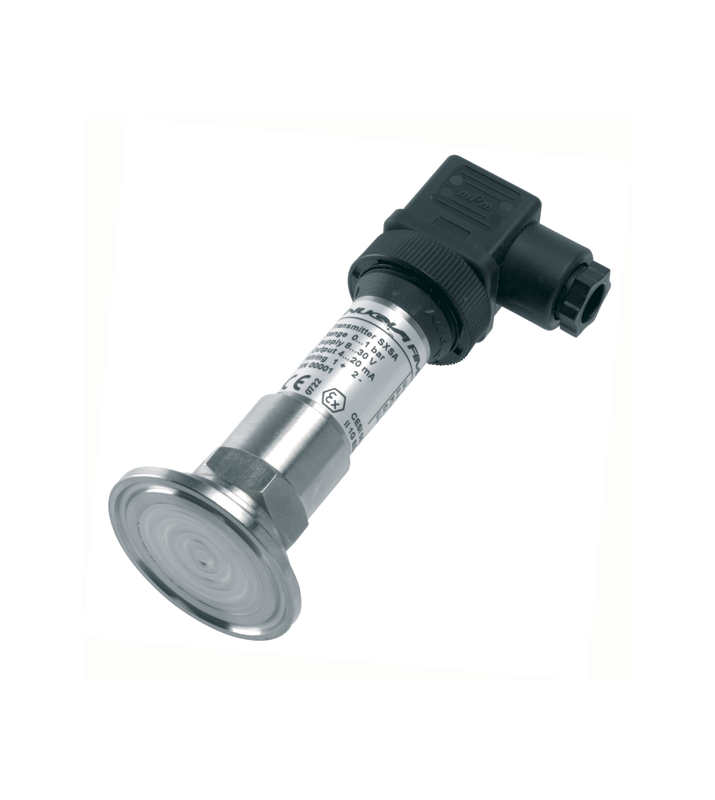

Intrinsically safe pressure transmitter, for food industry and sanitary applications, ATEX version

✔ Construction and finishing: as per 74-06 SSI
✔ Zones : 0, 1, 2, 20, 21, 22
✔ Wetted parts: AISI 316L st.st.
✔ EMC emission and immunity: as per EN 61326
✔ Calibration: adjustable
✔ Full traceability

Industrial sector:
  • Food
  • Pharmaceutical
  • Water treatment
  • Sanitary
Instrument type:
  • Pressure transmitters
Specific applications:
  • ATEX version
  • Crystallizzing fluids
  • Viscous fluids
  • Vacuum
  • Combined (Vacuum + Pressure)
  • Sedimentous fluids
Conformity:
  • 3A
  • Directive PED 2014/68/UE
  • Directive ATEX 2014/34/UE
  • Directive RoHS 2011/65/UE
  • Directive EMC 2014/30/UE
Function:
  • Transmitter
Material:
  • All Stainless steel
Accuracy:
  • <= ±0,5% of the range
Range:
  • 0...0,6 / 0...40bar
Sensing element:
  • Welded diaphragm
Protection degree:
  • IP 65
Process connection material:
  • AISI 316 L
Sensing element material:
  • AISI 316 L
Type of protection:
  • II 1GD Ex ia IIC T6 Ex ia IIIC T85°C Ta<=60°C
Output signal:
  • 4...20mA
